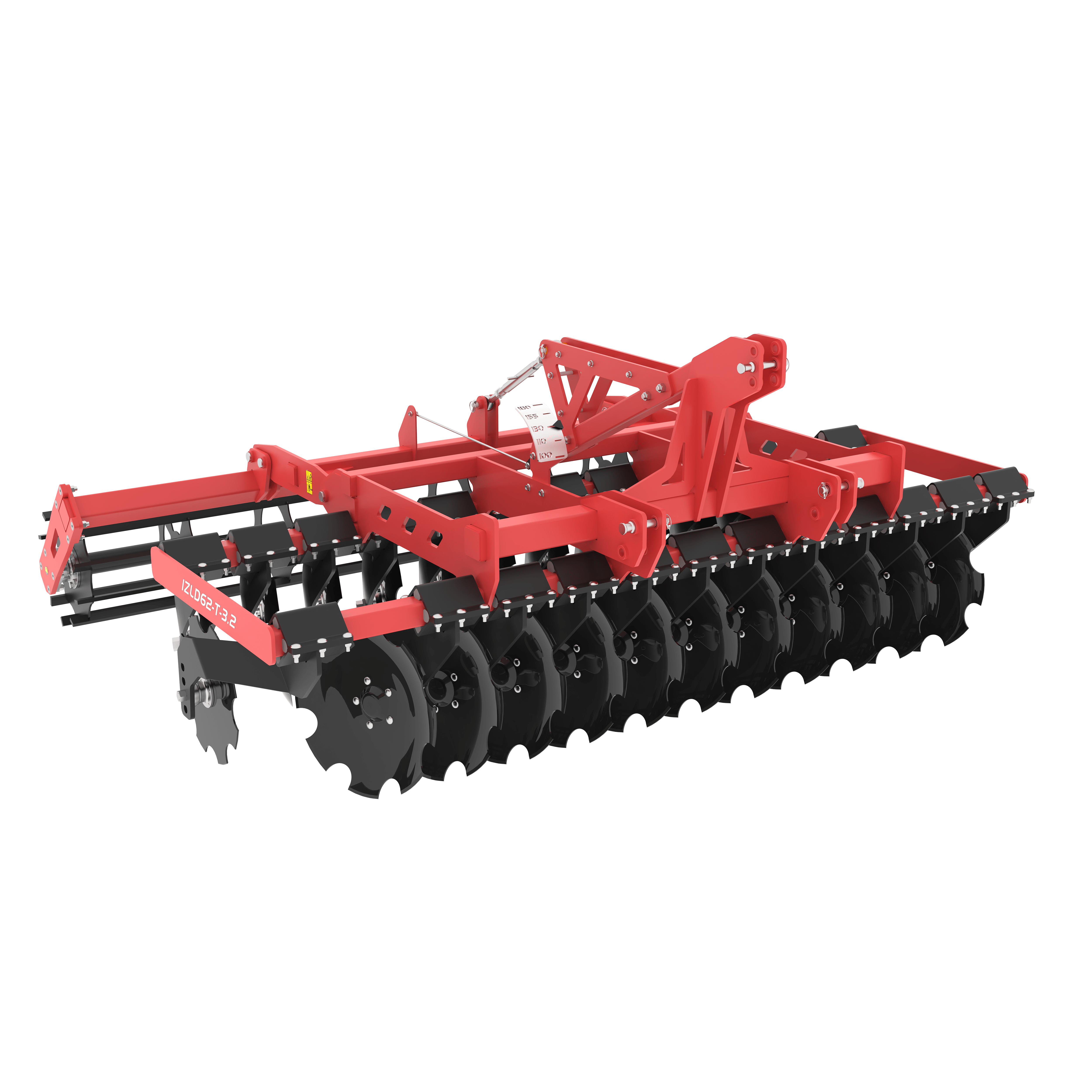

1ZLD62-3.2 disc harrow
| Model | 1ZLD62-2.2 | 1ZLD62-2.7 | 1ZLD62-3.2 |
| Oversize(mm) | 2702×2817×1509 | 2702×3317×1509 | 2702×3817×1509 |
| Weight | 1300 | 1596 | 1680 |
| Power(Hp) | ≥120 | ≥150 | ≥180 |
| Hooking way | Suspension | Suspension | Suspension |
| Working width | 2200 | 2700 | 3200 |
| Disc diameter(mm) | φ620 | φ620 | φ620 |
| Disc spacing(mm) | 250 | 250 | 250 |
| Number of discs(mm) | 18 | 22 | 26 |
- Overview
- Other Products
Description:
Combined tillage machine, is a comprehensive operation equipment that can complete the soil crushing ,pressing and leveling，can make the seedbed to conserve soil moisture at one time, and greatly improve the operation efficiency. It is foldable, which greatly reduces the floor area after folding, reducing the difficulty of transportation and inventory.
Advantage:
1. Collapsible, after folding area and height is greatly reduced, reduce the difficulty of transportation and storage.
2. Independent rake, using special rubber strip, in the torsion Angle of 30°, the torsion stiffness is not less than 100kg.
3. Identifiable hydraulic joint, according to the color can quickly identify the line function, can effectively reduce the risk of misconnection with the tractor interface.
4. Floating system to avoid equipment damage caused by uneven ground during the working process.

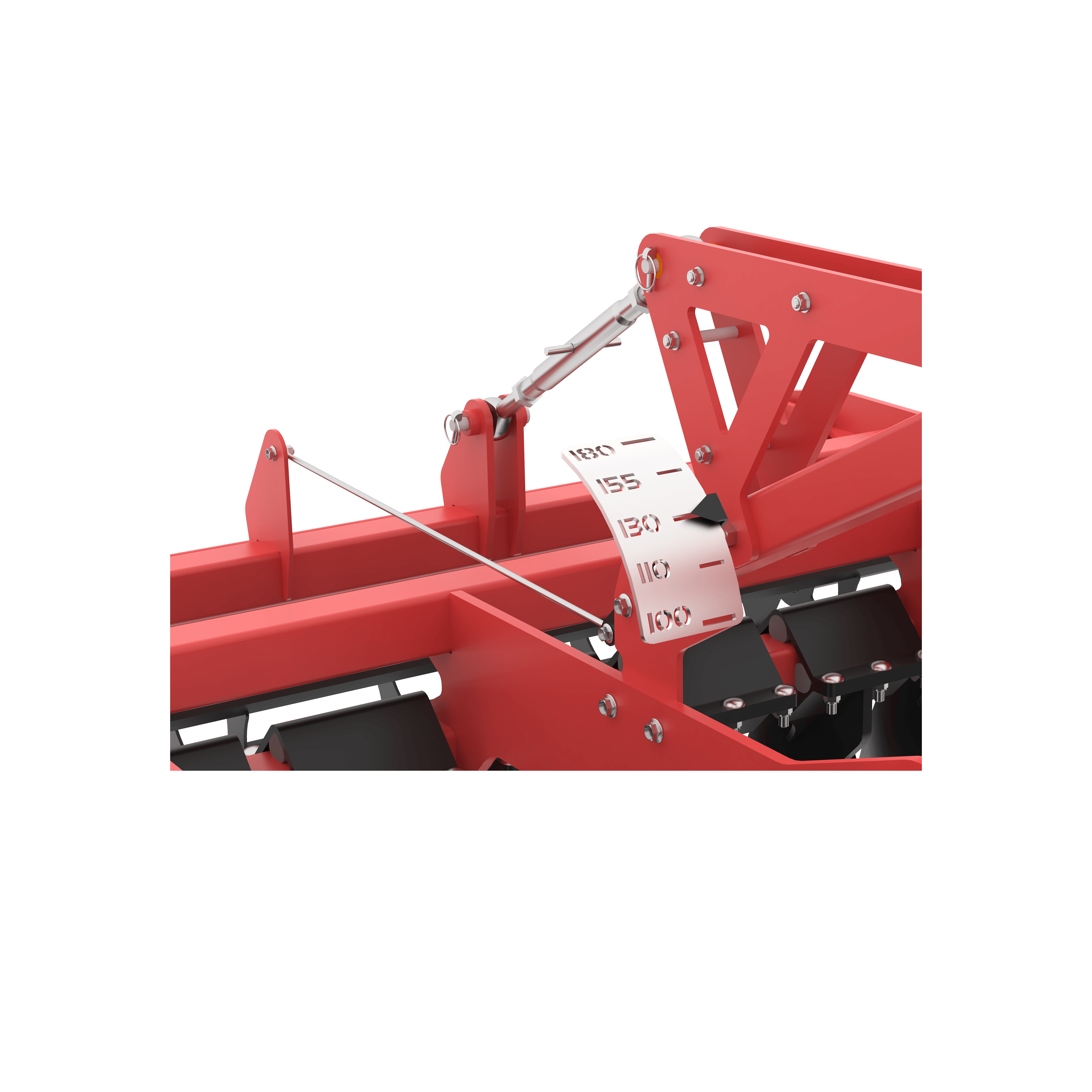

5. The cultivated land depth adjustment mechanism can directly adjust the cultivated land depth by increasing or reducing the number of blocks.
6. Leveling mechanism, make full use of leveling scraper weight, in the operation of the equipment to suppress the leveling after the seedbed more flat. Smoothing mechanism is optional, users can choose according to their own needs.
